5-500mesh AISI 304 Stainless Steel Wire Mesh Rolls Square Hole 50m Length

Name: 5500mesh AISI 304 Stainless Steel Wire Mesh Rolls Square Hole 50m Length
Brand: YINGKANG, FLYING TIGER
Price: 1 USD

5-500mesh AISI 304 Stainless Steel Wire Mesh Rolls Square Hole 50m Length Manufactures

Brand Name : YINGKANG, FLYING TIGER

Model Number : YKM-06

Certification : CE, ISO, FAD

Place of Origin : Anping Hebei China

MOQ : 1

Price : contact me

Payment Terms : ,T/T,Western Union,MoneyGram

Supply Ability : 100

Delivery Time : 3-6days

Packaging Details : carton box, plate

Porudct name : AISI 304 Stainless Steel Wire Mesh

Material : Stainless steel 201/304/304L/316/316L

Hole types : Square

Wire Diameter : 0.015- 2.5mm

Hole size : 1x1mesh--500x500mesh

Finished type : Roll, Sheet

Width : 0.5m - 3m

Length : 2m - 50m

Weaving type : Plain Weave Twill Weave Plain Dutch Weave Triple Weave Crimped weave Multiples Weave

Packing : Carton box, Plate, Waterproof paper

Sample : Available

Customized : Available

Application : Filter, Window Screen, Decorate

Key words : 500mesh AISI 304 Stainless Steel Wire Mesh

Contact Now

5-500mesh AISI 304 Stainless Steel Wire Mesh

Weaving type of 5-500mesh AISI 304 Stainless Steel Wire Mesh

Plain Weave

Twill Weave

Plain Dutch Weave

Triple Weave

Crimped weave

Multiples Weave

Specification of 5-500mesh AISI 304 Stainless Steel Wire Mesh

Mesh/Inch	Wire Diameter		Aperture		Open Area
Mesh/Inch	Inch	MM	Inch	MM	Open Area
1x1	.080	2.03	.920	23.37	84.6
2X2	.063	1.60	.437	11.10	76.4
3X3	.054	1.37	.279	7.09	70.1
4X4	.063	1.60	.187	4.75	56.0
4X4	.047	1.19	.203	5.16	65.9
5X5	.041	1.04	.159	4.04	63.2
6X6	.035	.89	.132	3.35	62.7
8X8	.028	.71	.097	2.46	60.2
10X10	.025	.64	.075	1.91	56.3
10X10	.020	.51	.080	2.03	64.0
12X12	.023	.584	.060	1.52	51.8
12X12	.020	.508	.063	1.60	57.2
14X14	.023	.584	.048	1.22	45.2
14X14	.020	.508	.051	1.30	51.0
16X16	.018	.457	.0445	1.13	50.7
18X18	.017	.432	.0386	.98	48.3
20X20	.020	.508	.0300	.76	36.0
20X20	.016	.406	.0340	.86	46.2
24X24	.014	.356	.0277	.70	44.2
30X30	.013	.330	.0203	.52	37.1
30X30	.012	.305	.0213	.54	40.8
30X30	.009	.229	.0243	.62	53.1
35X35	.011	.279	.0176	.45	37.9
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
110X110	.0040	.1016	.0051	.1295	30.7
120X120	.0037	.0940	.0064	.1168	30.7
150X150	.0026	.0660	.0041	.1041	37.4
160X160	.0025	.0635	.0038	.0965	36.4
180X180	.0023	.0584	.0033	.0838	34.7
200X200	.0021	.0533	.0029	.0737	33.6
250X250	.0016	.0406	.0024	.0610	36.0
270X270	.0016	.0406	.0021	.0533	32.2
300X300	.0051	.0381	.0018	.0457	29.7
325X325	.0014	.0356	.0017	.0432	30.0
400X400	.0010	.0254	.0015	.370	36.0
500X500	.0010	.0254	.0010	.0254	25.0

Feature of 5-500mesh AISI 304 Stainless Steel Wire Mesh

Corrosion Resistance

High-temperature resistance

Durable

Hygienic

Wear resistance

Product Tags:

AISI 304 Stainless Steel Wire Mesh

500mesh Stainless Steel Wire Mesh

AISI 304 stainless steel mesh rolls

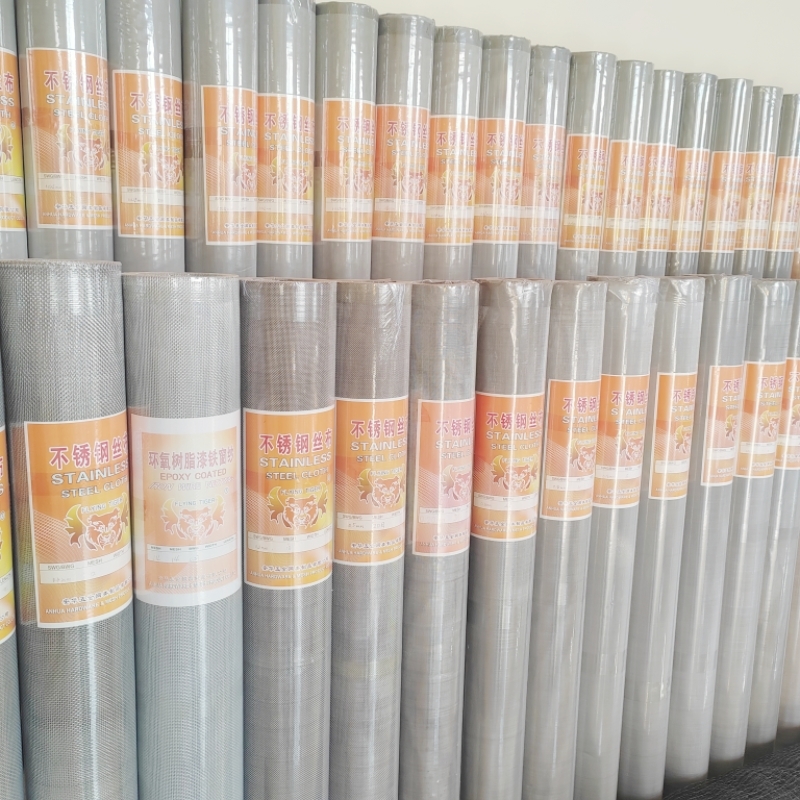

5-500mesh AISI 304 Stainless Steel Wire Mesh Rolls Square Hole 50m Length Images
